Commercial Aluminum Fencing & Gates
Fabricated to drawing for commercial, multi-residential and institutional projects. Supplied and installed across Canada from Toronto and Vancouver.
ArcView fabricates custom aluminum perimeter fencing, louvered privacy screens and pedestrian, swing and sliding gates for commercial, multi-residential and institutional sites across Canada. Panels and gates are made to the site plan, powder coated to a specified colour and supplied with post and footing details, with supply-only or supply-and-install from Toronto and Vancouver.
- Vertical blade, louvered privacy, horizontal slat, spear-top and full-privacy panel systems in extruded aluminum
- Swing and cantilever sliding gates, automation-ready, with access-control provisions
- In-ground, flanged and face-fixed posts detailed to the site's substrate and frost depth
- No retail panel sizes or price lists: every run is fabricated to the drawings
Where it's used
Commercial and multi-residential applications ArcView fabricates for. Single-family residential work is not offered on this line.
Multi-residential perimeters
Street-edge and courtyard fencing for condominium and rental developments, matched to the building's metal finish.
Amenity & pool enclosures
Blade and picket enclosures for outdoor amenity areas and pools, detailed to the municipal enclosure by-law.
Garbage, mechanical & loading screens
Louvered and slat screens that hide bins, generators and loading areas from the street.
Parking & site access
Cantilever sliding and swing gates on parkade ramps and service yards, ready for operators and card readers.
Schools, clinics & campuses
Perimeter and separation fencing with durable finishes and controlled pedestrian gates.
Rooftop & terrace privacy
Louvered screens between terraces and around rooftop amenity spaces.
Systems
Each system is a starting point for shop drawings, not a catalogue item. Sections, spacings and heights are set by the project.

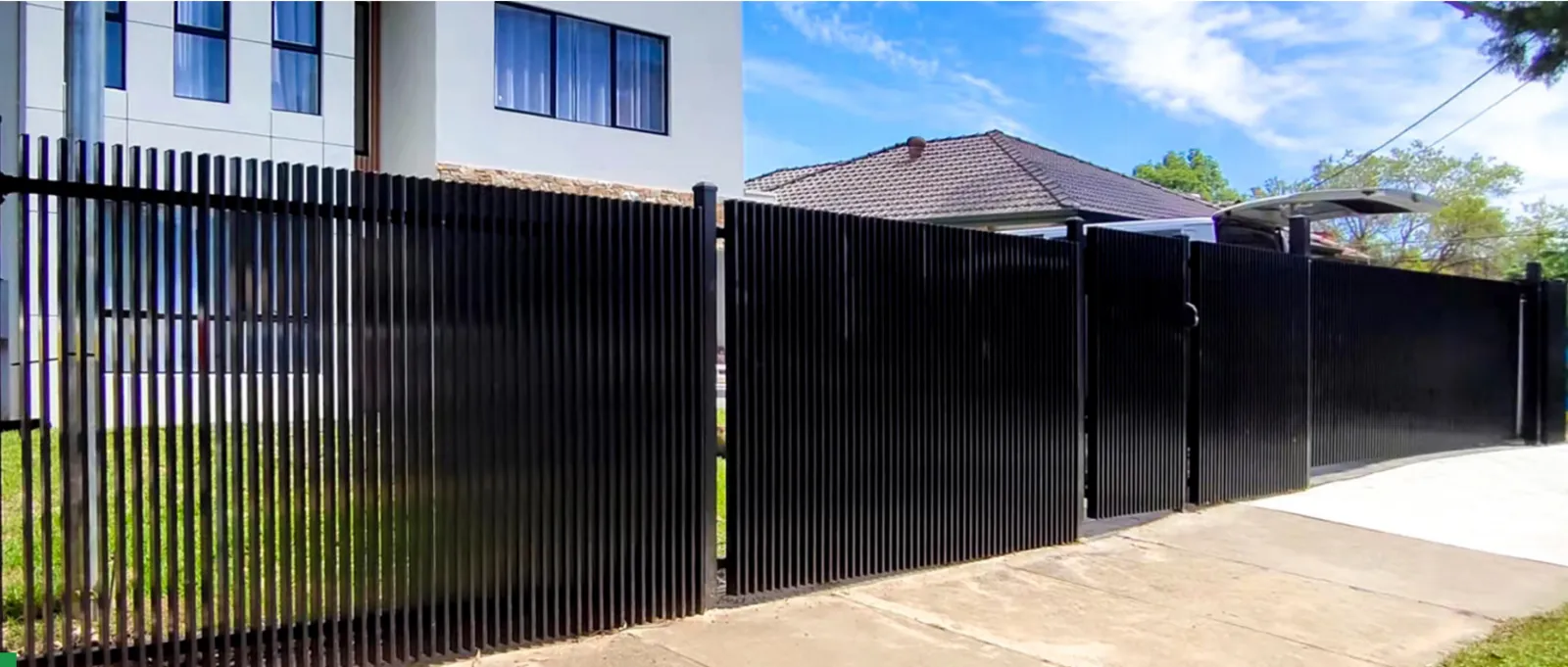

Vertical blade fence
Extruded rectangular blades on horizontal rails, with the blade gap set to the required visibility. The most common contemporary commercial fence profile.
- Rails
- 40 × 40 mm extruded aluminum rails
- Blades
- 65 × 16 mm extruded blades; 40, 50 or 60 mm gaps, or closed for full privacy
- Panel
- Fabricated to the post module on the site plan; heights from 900 mm to 2400 mm
- Fixing
- In-ground posts (minimum 500 mm into concrete), flanged posts on slab, or face-fixed to walls
- Slopes
- Raked panels for grade changes, stepped panels for steeper runs
Typical applications: Multi-residential perimeters · Amenity enclosures · Street edges
Louvered privacy screen
Angled louvre blades that block the line of sight completely while letting air through. The right system for garbage enclosures, mechanical yards and terrace dividers.
- Blades
- 70 × 13 mm angled louvre blades at approximately 58 mm centres
- Rails
- 40 × 40 mm extruded aluminum rails
- Visibility
- Full visual block at eye level; ventilated
- Gates
- Matching louvered pedestrian and double-leaf service gates
Typical applications: Garbage and bin enclosures · Mechanical and generator yards · Terrace privacy dividers

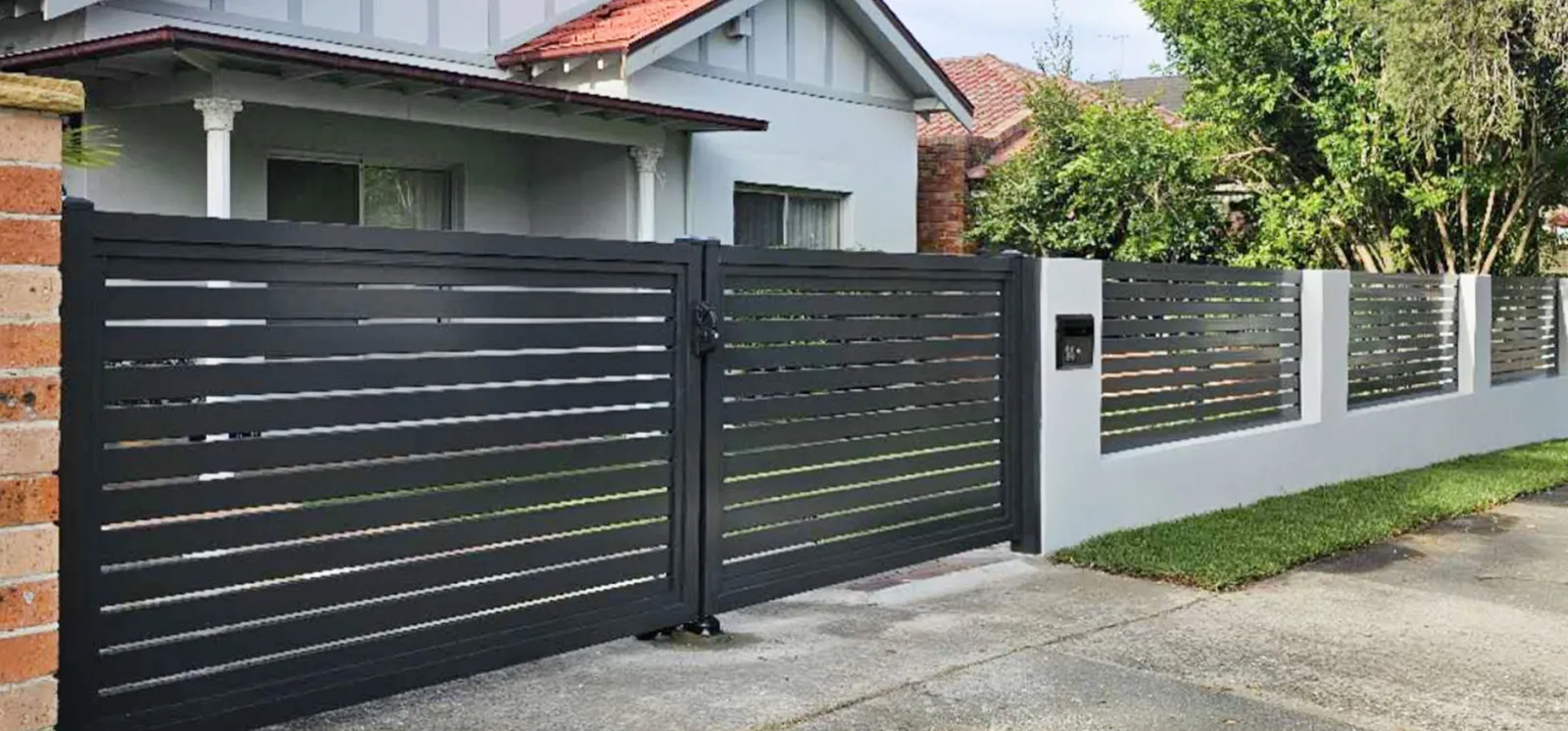

Horizontal slat fence
Horizontal aluminum slats in a U-channel frame, with a small gap for a strong horizontal line. Available in wood-grain finishes where a timber look is specified.
- Slats
- 65 × 16 mm extruded aluminum slats; 10 to 15 mm gaps
- Frame
- 30 × 30 mm U-channel on posts or walls; fully welded gate frames
- Finish
- Powder coat or wood-grain sublimation
- Gates
- Fully welded slat gates with pre-drilled provisions for digital locks
Typical applications: Courtyard and podium screens · Feature fencing at entrances · Rooftop amenity dividers

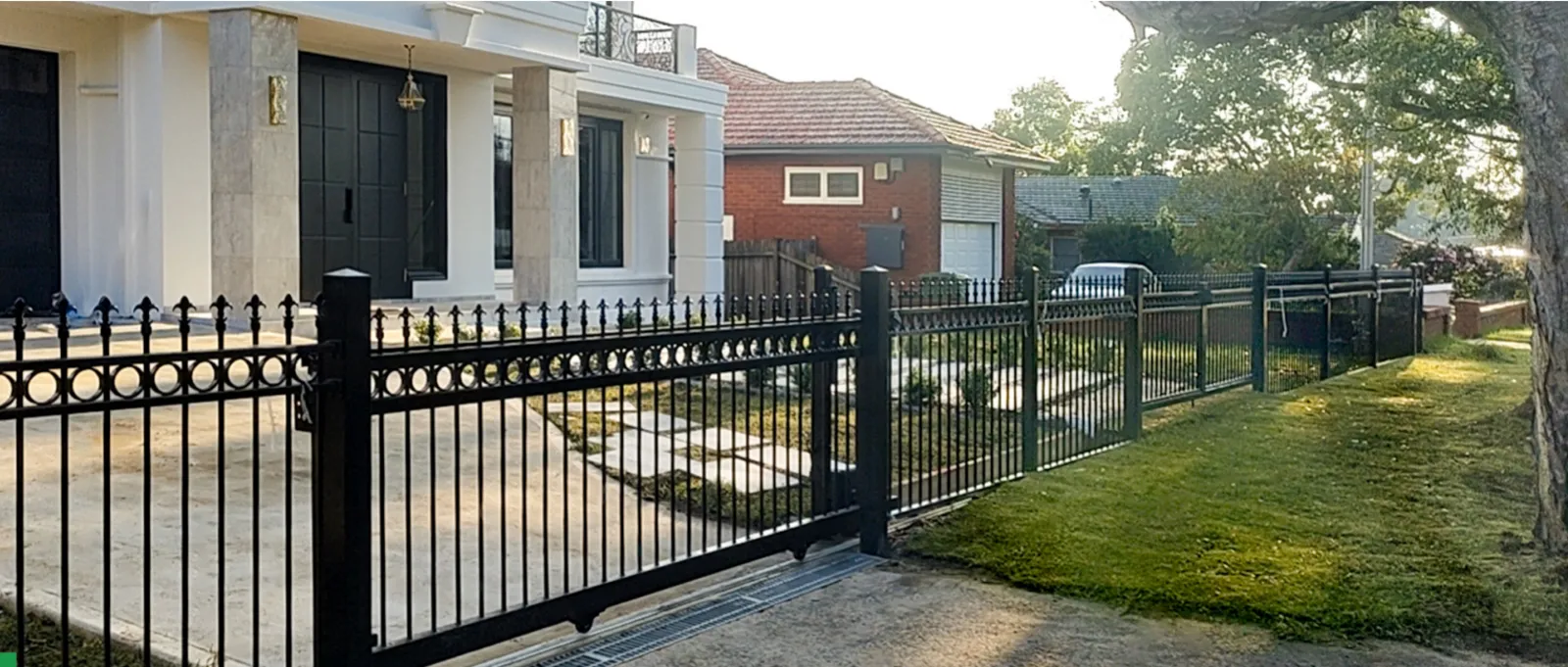

Spear-top perimeter fence
Picket fencing with cast aluminum spear or ring detailing for institutional, heritage-district and campus perimeters where a traditional profile is required.
- Pickets
- 16 to 19 mm pickets at approximately 100 to 110 mm centres, cast aluminum spear or ring tops
- Rails
- 38 × 25 mm or 40 × 40 mm rails
- Heights
- 1200 to 1800 mm; fabricated to the drawings
- Gates
- Matching swing gates and cantilever sliding gates
Typical applications: Schools and campuses · Places of worship · Heritage streetscapes
Full-privacy insert panel fence
Solid aluminum insert panels slotted between posts for complete screening, with optional decorative or perforated top sections.
- Panels
- Extruded aluminum insert boards in a post-and-channel system
- Heights
- 1800 to 2400 mm typical
- Top section
- Optional louvered, slat or perforated top band
Typical applications: Property line screening · Service yards · Noise and privacy separation

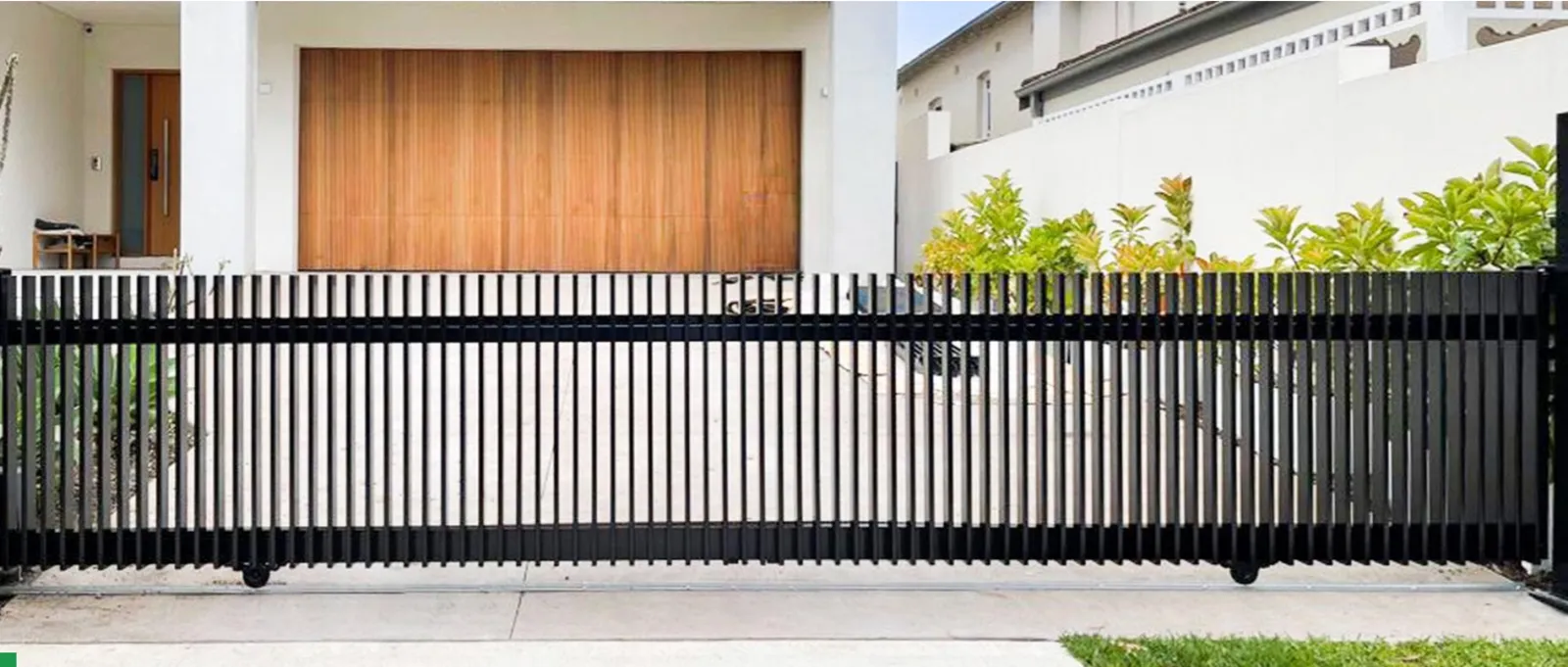

Swing & sliding gates
Pedestrian swing gates and vehicle swing or cantilever sliding gates fabricated to match any of the fence systems above, with provisions for operators and access control.
- Pedestrian gates
- Fully welded frames with self-closing hinges and lockable or magnetic latches; keyless and digital-lock provisions
- Vehicle gates
- Cantilever sliding gates to approximately 4 m clear single leaf; double-leaf swing gates for wider openings
- Automation
- Operator mounting, loop and photo-eye provisions, card reader and intercom pedestals coordinated with the electrical contractor
- Hardware
- Heavy-duty adjustable hinges, drop bolts, gate stops and post caps
Typical applications: Parkade ramps · Service yard access · Amenity and pool enclosures
Detailed to the site, not to a catalogue
Commercial fencing is governed less by the building code than by municipal by-laws, site plan approval and the substrate. These are the items ArcView confirms before detailing.
- Height limits
- Municipal fence by-laws set maximum heights at street edges and property lines; the site plan approval often sets the required height for enclosures
- Pool and amenity enclosures
- Enclosure by-laws set minimum heights, opening limits and self-closing, self-latching gate requirements; these vary by municipality and are checked per site
- Footings
- In-ground posts are set below the local frost depth; flanged posts on slabs are anchored to the structural engineer's slab detail
- Grade changes
- Raked or stepped panels are detailed from the site survey so gaps at the bottom rail stay within the by-law limit
- Gates and automation
- Automated vehicle gates are detailed with the entrapment-protection provisions the operator manufacturer requires
ArcView reviews the site plan and by-law requirements with the consultant before shop drawings. Fence heights and gate hardware are not selected from a standard list.
How we work
- STEP 1
Drawings & scope
Send architectural drawings, a site plan or a marked-up photo set. We confirm scope, code path and finish options and return a budget range.
- STEP 2
Shop drawings & engineering
ArcView prepares shop drawings for the specific site. Where the authority having jurisdiction requires it, drawings are reviewed and stamped by a licensed engineer in the project's province.
- STEP 3
Finish & sample approval
Powder-coat colour is matched to a RAL reference or an existing building finish. A coated sample and a section sample are approved before fabrication starts.
- STEP 4
Fabrication
Extruded 6063-T5 aluminum profiles are cut, welded or mechanically joined to the shop drawings, then powder coated in a controlled process.
- STEP 5
Delivery & installation
Supply-only to the general contractor, or supply and install by ArcView crews. Both are available across Canada.
Finish options
Architectural powder coat
AAMA 2604 exterior-grade powder coating as standard; AAMA 2605 super-durable coating specified for coastal BC and other high-exposure sites.
Colour matching
Any RAL reference or an existing window, curtain wall or cladding colour. Satin black, charcoal, graphite grey, off-white and bronze are the most specified on commercial work.
Wood-grain sublimation
Heat-transfer wood-grain finish over powder coat for slat fences and privacy screens where a timber look is wanted without timber maintenance.
Anodized
Clear or bronze anodizing available for louvers and feature panels where a metallic finish is preferred to a painted one.
- Same finish as ArcView aluminum windows, doors and curtain wall
- Coated sample approved before fabrication
