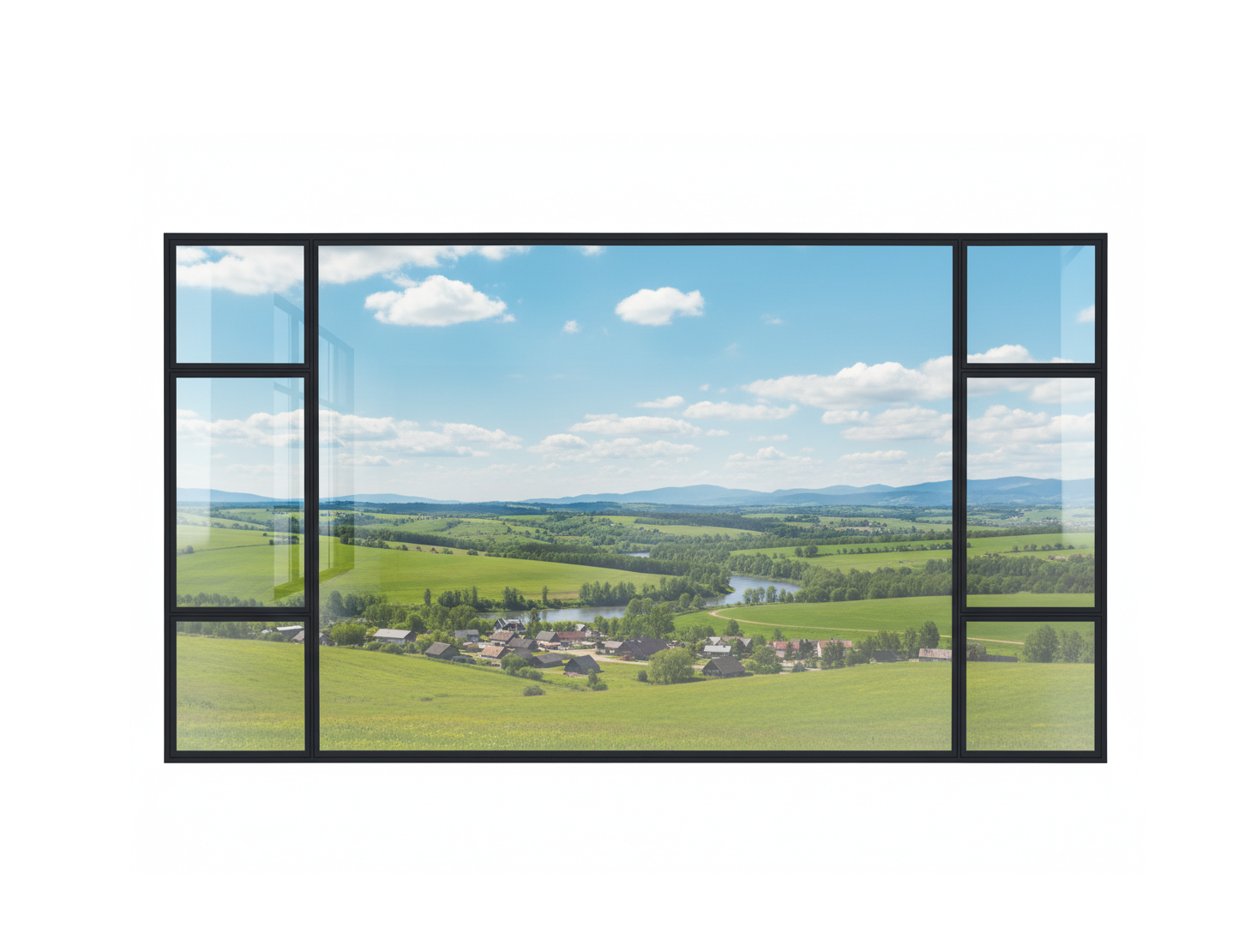

Thermal-Break Aluminum Windows: Complete Technical Guide>

Introduction to Thermal-Break Technology>
**Thermal-break aluminum windows** represent a revolutionary advancement in fenestration technology, specifically engineered to overcome aluminum's inherent thermal conductivity challenge. By incorporating insulating materials between interior and exterior aluminum profiles, these windows deliver exceptional energy performance while maintaining aluminum's superior strength and durability.

Understanding Thermal Bridging>

The Problem with Standard Aluminum>Traditional aluminum windows suffer from significant thermal bridging:
- **High Conductivity**: Aluminum conducts heat 1000x faster than wood
- **Energy Loss**: Up to 30% of home heating/cooling energy lost through windows
- **Condensation**: Cold frames lead to interior condensation and potential mold growth
- **Comfort Issues**: Cold surface temperatures create drafts and discomfort

The Thermal-Break Solution>A thermal break interrupts the continuous aluminum path with low-conductivity materials:
- **Polyamide Strips**: Glass fiber reinforced plastic inserts
- **Thermal Separation**: 14-44mm gap between interior/exterior profiles
- **U-Value Improvement**: Reduces U-value from 5.0+ to 0.8-2.0 W/(m²·K)

Thermal-Break Design Components>

1. Polyamide Thermal Break>The heart of the system is the polyamide (PA66) thermal break:

**Material Properties:**
- **Composition**: Polyamide 6.6 with 25% glass fiber reinforcement (PA66 GF25)
- **Thermal Conductivity**: 0.30 W/(m·K) vs. aluminum's 160 W/(m·K)
- **Tensile Strength**: 90-120 MPa
- **Temperature Range**: -40°C to +80°C continuous operation

**Design Variations:**
- **Pour-and-Debridge**: Liquid polyamide poured into channels, then mechanically separated
- **Crimp/Roll-In**: Pre-formed strips mechanically crimped into profiles
- **Hybrid Systems**: Combination of both methods for optimal performance

2. Multi-Chamber Profile Design>Modern thermal-break windows feature sophisticated chamber structures:

**Chamber Functions:**
- **Insulation Chambers**: Air-filled cavities reduce heat transfer
- **Drainage Chambers**: Water management and pressure equalization
- **Reinforcement Chambers**: Steel or aluminum reinforcement channels
- **Gasket Channels**: EPDM seal retention grooves

**Typical Configuration:**
- **3-Chamber System**: Entry-level thermal performance
- **5-Chamber System**: Standard high-performance specification
- **7-Chamber System**: Premium passive house grade

3. Glazing Integration>The glazing unit is critical to overall window performance:

**Glass Options:**
- **Double Glazing**: 24-28mm overall thickness
- **Triple Glazing**: 36-44mm overall thickness
- **Quadruple Glazing**: 52-56mm for extreme climates

**Glass Technologies:**
- **Low-E Coatings**: Reduces radiative heat transfer (ε = 0.03-0.15)
- **Warm Edge Spacers**: Reduces edge-of-glass heat loss
- **Gas Fills**: Argon (90% fill) or Krypton (95% fill) for enhanced insulation

Performance Characteristics>

Thermal Performance>**U-Value (Overall Window):**
- **Standard Double Glazing**: 1.4-1.8 W/(m²·K)
- **High-Performance Triple Glazing**: 0.8-1.2 W/(m²·K)
- **Passive House Grade**: 0.6-0.8 W/(m²·K)

**Frame U-Value:**
- **Basic Thermal Break**: 2.0-2.5 W/(m²·K)
- **Enhanced Thermal Break**: 1.2-1.8 W/(m²·K)
- **Premium Multi-Chamber**: 0.8-1.2 W/(m²·K)

Air Tightness>**NAFS Classification:**
- **Class A1**: ≤2.0 L/(s·m²) at 75 Pa
- **Class A2**: ≤1.5 L/(s·m²) at 75 Pa
- **Class A3**: ≤0.5 L/(s·m²) at 75 Pa (recommended for Canadian climates)

Water Performance>**Water Penetration Resistance:**
- **Class B1**: 150 Pa (light exposure)
- **Class B3**: 300 Pa (moderate exposure)
- **Class B7**: 700 Pa (severe exposure - coastal/high-rise)

Structural Performance>**Wind Load Resistance:**
- **Performance Grade PG25**: Residential low-rise
- **Performance Grade PG40**: Residential standard
- **Performance Grade PG50-70**: Commercial/high-rise

Installation Best Practices>

Pre-Installation Preparation>1. **Rough Opening Verification**
- Check dimensions: ±5mm tolerance
- Verify squareness: <3mm diagonal difference
- Inspect substrate condition and load-bearing capacity

2. **Flashing and Weather Barrier**
- Install sill pan flashing with 150mm end dams
- Apply self-adhered membrane to jambs
- Integrate with building weather barrier system

Installation Procedure>1. **Shimming and Leveling**
- Use non-compressible shims at 300mm intervals
- Level to ±1.5mm over full width/height
- Support at structural points, not thermal break

2. **Fastening**
- Fastener spacing: 300-400mm maximum
- Fastener type: Corrosion-resistant screws
- **Critical**: Fasten through reinforcement chambers only, never through thermal break

3. **Insulation and Air Sealing**
- Low-expansion polyurethane foam or backer rod + sealant
- Maintain continuous air barrier
- Avoid over-expansion that can bow frames

4. **Exterior Finishing**
- Install head and jamb flashing
- Apply compatible sealant (polyurethane or silicone)
- Ensure proper drainage path to exterior

Maintenance Requirements>

Regular Maintenance (Annual)>- **Hardware Lubrication**: Apply silicone-based lubricant to hinges, locks, and operators
- **Drainage Weep Holes**: Clear debris from weep holes and drainage channels
- **Gasket Inspection**: Check EPDM gaskets for damage or compression set
- **Glass Cleaning**: Use non-abrasive cleaners; avoid harsh chemicals

Long-Term Maintenance (5-10 Years)>- **Gasket Replacement**: Replace worn or hardened gaskets
- **Hardware Adjustment**: Adjust hinges and locks for proper operation
- **Sealant Renewal**: Re-seal exterior perimeter if sealant shows cracking

Expected Service Life>- **Aluminum Profiles**: 50+ years (powder-coated finish)
- **Thermal Break**: 40-50 years (no degradation expected)
- **Glazing Units**: 20-25 years (seal failure determines lifespan)
- **Hardware**: 15-25 years (depending on usage frequency)

Comparison: Thermal-Break vs. Other Materials>

vs. Vinyl Windows>**Advantages:**
- **Strength**: 3x stronger; supports larger glass units
- **Aesthetics**: Slimmer sightlines and more color options
- **Durability**: No UV degradation or warping
- **Recyclability**: 100% recyclable aluminum

**Disadvantages:**
- **Cost**: 20-40% more expensive
- **Thermal Performance**: Slightly lower than premium vinyl (0.1-0.2 W/(m²·K) difference)

vs. Wood Windows>**Advantages:**
- **Maintenance**: No painting or staining required
- **Weather Resistance**: Impervious to moisture and rot
- **Consistency**: No expansion/contraction with humidity changes

**Disadvantages:**
- **Thermal Performance**: Wood has lower conductivity (but thermal break aluminum is competitive with proper design)
- **Aesthetics**: Some prefer wood's natural appearance

vs. Aluminum-Clad Wood>**Advantages:**
- **Cost**: 15-30% less expensive
- **Thermal Performance**: Comparable with advanced thermal break designs
- **Maintenance**: Lower maintenance (no interior wood to finish)

**Disadvantages:**
- **Interior Aesthetics**: No natural wood interior
- **Thermal Mass**: Less thermal mass than solid wood

Applications and Specifications>

Residential Applications>- **Single-Family Homes**: Standard specification for new construction and renovations
- **Multi-Family**: Ideal for condominiums and townhomes
- **Passive House Projects**: Meets PHI certification requirements with proper glazing

Commercial Applications>- **Office Buildings**: Curtain wall and punched opening systems
- **Institutional**: Schools, hospitals, government facilities
- **Retail**: Storefront systems with thermal performance

Climate Zone Recommendations>**Canadian Climate Zones:**
- **Zone 4-5 (Mild)**: Double glazing with standard thermal break
- **Zone 6 (Cold)**: Triple glazing with enhanced thermal break
- **Zone 7-8 (Very Cold)**: Triple/quadruple glazing with premium multi-chamber thermal break

Cost Considerations>

Pricing Structure (Typical)>- **Standard Thermal-Break Double Glazing**: $400-$600 per m²
- **High-Performance Triple Glazing**: $600-$900 per m²
- **Passive House Grade**: $900-$1,200 per m²

**Cost Factors:**
- **Profile System**: Basic vs. premium multi-chamber
- **Glazing Specification**: Double vs. triple vs. quadruple
- **Hardware Quality**: Standard vs. premium multi-point locks
- **Finish Options**: Standard colors vs. custom RAL colors
- **Size and Configuration**: Large units and complex shapes increase cost

Return on Investment>**Energy Savings (vs. standard aluminum):**
- **Annual Savings**: $150-$400 per window
- **Payback Period**: 8-15 years
- **Lifecycle Savings**: $3,000-$8,000 per window over 30 years

**Additional Benefits:**
- **Increased Property Value**: 3-5% home value increase
- **Improved Comfort**: Reduced drafts and cold spots
- **Noise Reduction**: 30-40 dB sound insulation
- **Condensation Resistance**: Eliminates interior condensation issues

Certifications and Standards>

North American Standards>- **NAFS-11 (AAMA/WDMA/CSA 101/I.S.2/A440)**: Performance classification
- **Energy Star**: Energy efficiency certification
- **NFRC**: Energy performance ratings (U-factor, SHGC, VT)

International Standards>- **Passive House Institute**: PHI certified components
- **ISO 10077**: Thermal performance calculation methods
- **EN 14351-1**: European product standard for windows and doors

Conclusion>
Thermal-break aluminum windows represent the optimal balance of performance, durability, and aesthetics for Canadian climates. With proper specification, installation, and maintenance, these windows deliver exceptional energy efficiency, comfort, and longevity. As building codes continue to emphasize energy performance, thermal-break aluminum technology will remain at the forefront of high-performance fenestration solutions.

For project-specific recommendations and technical support, consult with our engineering team.
