What is the 4SG System?

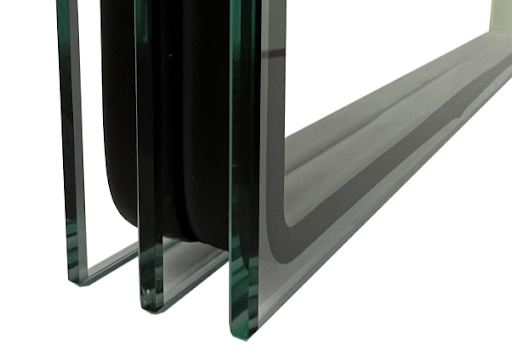

When discussing high-performance windows, the focus is often on the frame. However, the true engine of energy efficiency lies between the panes of glass. The 4SG (4-Season Glazing) System—powered by advanced reactive thermoplastic spacer (TPS) technology—is a revolutionary warm-edge sealing system that completely replaces traditional aluminum or steel spacers in insulating glass units (IGUs).
By combining the spacer, desiccant, and primary sealant into one continuous, structurally bonded material, the 4SG system ensures your custom windows deliver unparalleled thermal performance and longevity, specifically engineered for extreme Canadian climates.
Why Traditional Windows Fail: The "Pumping Effect"
In regions like the Prairies or the GTA, windows endure massive temperature swings—from freezing winter nights to scorching summer afternoons. These fluctuations cause the glass panes to expand and contract, creating a phenomenon known as the "Pumping Effect."
Traditional rigid metal spacers cannot move with the glass. Over time, this constant stress weakens the adhesive, causing seal failure, allowing the insulating Argon gas to escape, and resulting in condensation (foggy windows).
The 4SG Advantage: Engineered for Extremes
1. Dynamic Elasticity & Stress Compensation
Unlike rigid metal spacers, the 4SG thermoplastic material is permanently flexible. It chemically bonds to the glass and stretches or compresses to accommodate the expansion and contraction of the window. This eliminates stress on the edge seal, ensuring the unit remains 100% intact even during the harshest winters.
2. Maximum Gas Retention
Argon or Krypton gas between the glass panes is what keeps your home warm. The 4SG system provides an absolute, CNC-applied continuous barrier without corner joints (where traditional windows leak most). Tests show that even after decades of extreme weather cycling, 4SG units maintain superior gas concentration, locking in your energy savings.
3. Condensation Elimination (True Warm Edge)
Metal is a highly conductive thermal bridge, which is why standard windows often feel ice-cold at the edges and develop winter condensation. The metal-free 4SG spacer boasts incredibly low thermal conductivity, keeping the interior edge of the glass warm, improving the overall U-Factor, and creating a healthier, mold-free living environment.
4. Superior Sound Insulation
Because the 4SG material acts as a dense, elastic shock absorber between the glass panes, it significantly reduces the transmission of exterior noise—making it ideal for busy urban environments or properties near high-traffic areas.
Perfect for Grand Architectural Designs
The structural integrity and chemical bonding capability of 4SG make it the premier choice for large-format glazing and complex architectural designs. Whether it's a massive 15-foot sliding door or a custom floor-to-ceiling glass wall, 4SG ensures these oversized units remain perfectly sealed and visually flawless without the bulky look of traditional metal spacers.
The Arcview Commitment
We integrate the industry-leading 4SG technology into our premium fenestration systems because we believe in building for generations.
When you invest in our high-performance windows, you are fully protected. All our architectural aluminum frames are backed by a comprehensive 10-year warranty, ensuring long-term structural integrity and peace of mind. To further stand by our craftsmanship, we provide a zero-labor-fee guarantee for the first year of installation, ensuring your custom windows perform flawlessly through every season.
Conclusion
The 4SG system is more than just a component; it is the safeguard of your home’s energy efficiency. By eliminating thermal bridging and adapting to climatic stress, 4SG technology guarantees your windows will remain clear, gas-tight, and highly insulating for decades to come.
Ready to see the difference?
Contact our technical team today or grab an information folder at our showrooms to discover how our 4SG-equipped glazing systems can elevate the comfort and efficiency of your next custom project.
